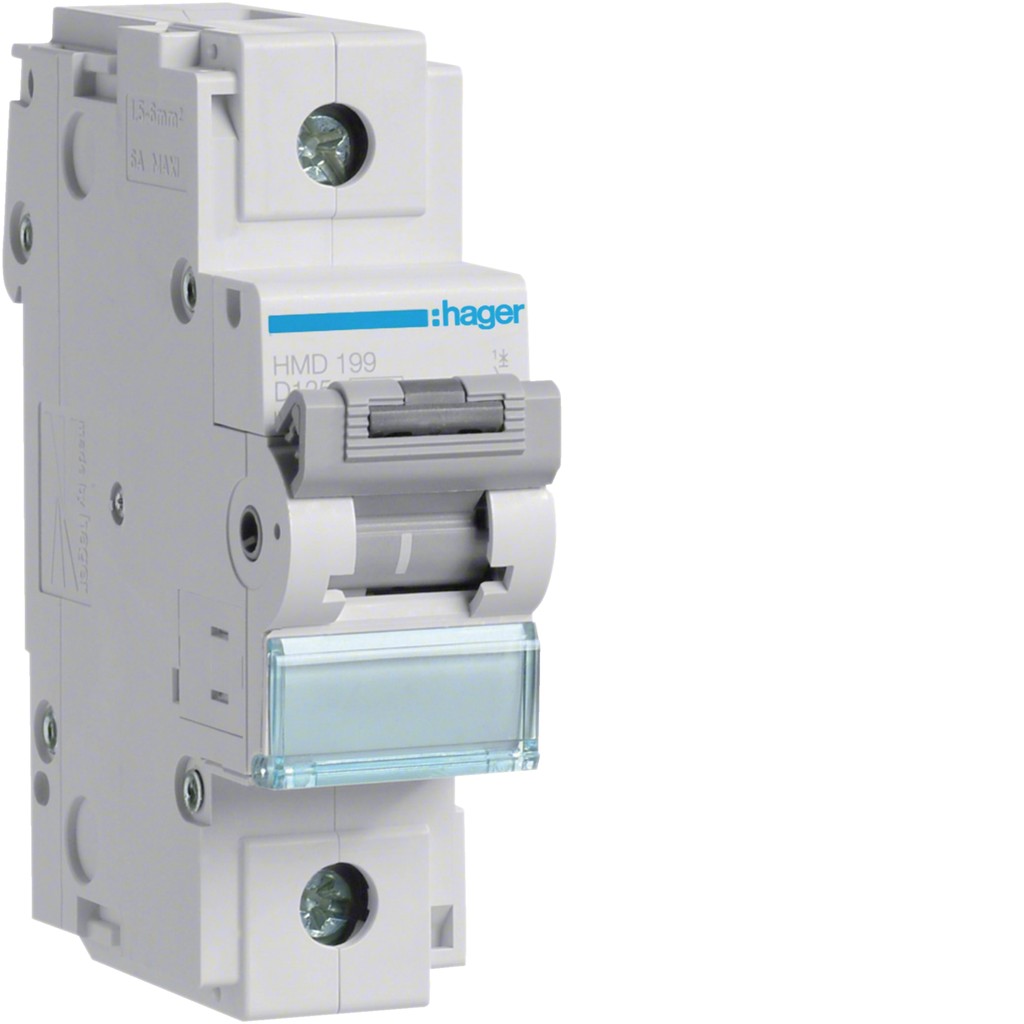

Hager HMD-Series MCB
| Brand | Hager |
| Series | HMD |
| Breaking Capacity | 15kA |
| Tripping Curve | D (10–20× In) |
| Voltage | 230/400V AC |
| Mounting | DIN rail 35mm |
| Standards | IEC 60898 |
Available Configurations
- 1P: 80A–125A (single-phase)
- 2P: 80A–125A (single-phase + neutral)
- 3P: 80A–125A (three-phase)
- 4P: 80A–125A (three-phase + neutral)
Key Features
- 15kA breaking capacity — high fault current protection
- D-curve tripping — high inrush current applications
- DIN rail mount — quick snap-fit installation
- High-current rated up to 125A
Applications
- High-current motor circuits
- Transformer protection
- Industrial welding equipment
- High inrush current applications
Alternative Products
These other products might interest you
Specifications
| Electrical / Distribution and Protection / Miniature Circuit Breakers | |
|---|---|
| Poles | 1P, 2P, 3P, 4P |
| Electrical Properties | |
|---|---|
| Rated Current | 80A, 100A, 125A |
| Breaking Capacity | 15kA |
| Others | |
|---|---|
| Series Name | HMD |
| 17.5mm Unit Size | 1 |
| Tripping Curve | D |
