Description

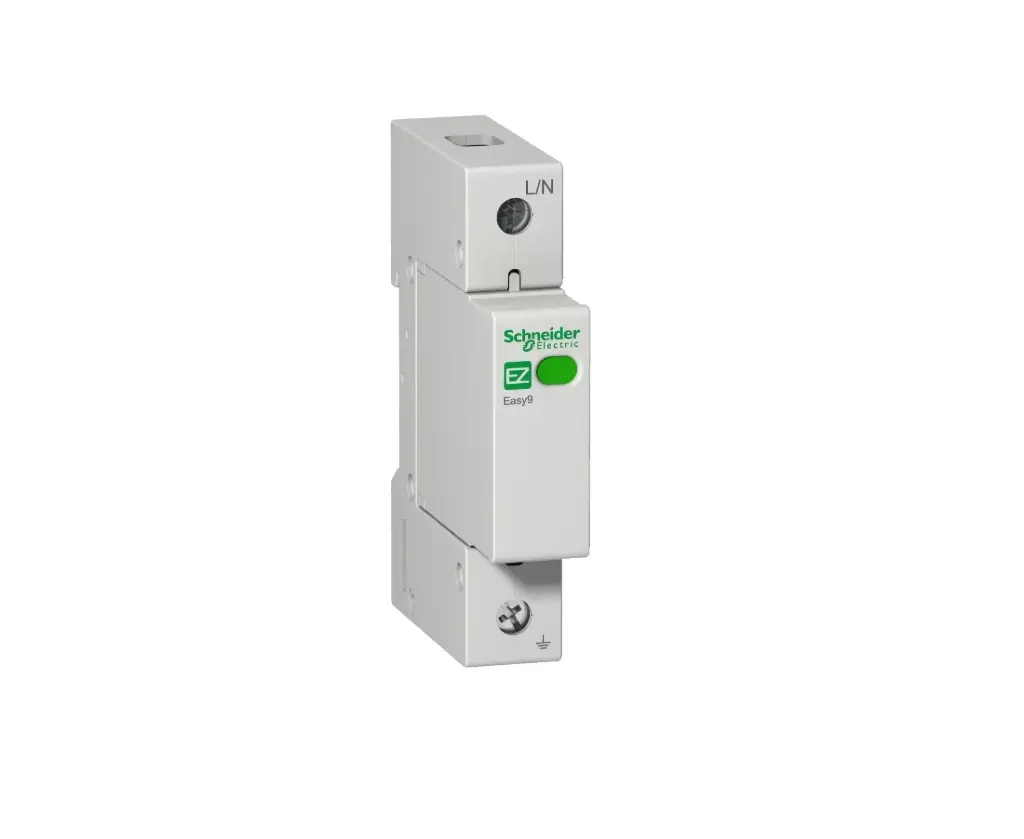

This Easy9 Product Is A Surge Arrester. This Product, According To Imax Maximum Discharge Current Of 20Ka, Is Recommended For A Medium Risk Level. It Can Be Associated With A 25A And C Curve Tripping Circuit Breaker. The Uc Maximum Continuous Operating Voltage Is 275Vac In Common Mode (L/Pe Or N/Pe). The In Nominal Discharge Current Is 10Ka. The Up Maximum Voltage Protection Level Is 1.3Kv It Can Be Mounted On Din Rail For Modular Installation. Its Width Is 2 Pitches Of 9Mm. According To Iec 60529 Standard, The Degree Of Protection Is Ip40 In Modular Enclosure. The Operating Temperature Is -5°C To 60°C. The Storage Temperature Is -5°C To 70°C. This Product Complies With Iec 61643-11 Standard.
